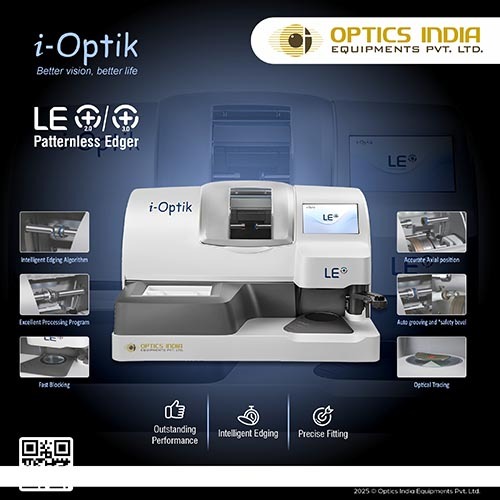

3D tracing edger (advanced variants)

Name: 3D tracing edger (advanced variants)
Brand: OPTICS INDIA EQUIPMENTS PVT. LTD.
Price: 750000 INR
Availability: InStock

Price 750000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3D tracing edger (advanced variants) Specification

Equipment Type
3D Tracing Edger (Advanced Variant)

Material
High-strength Alloy, Engineering Plastic Cover

Technology
3D Vision Tracing System with Multi-Axis Sensing

Properties
Automatic 3D Shape Tracing, High-Precision Edging

Grade
Clinic/Hospital Advanced Grade

Lens Specification
Supports Mineral, Plastic, and Polycarbonate Lenses

Lens Diameter
18 mm - 70 mm

Prism
Up to 10

Driven Method
Precision Servo Motor Driven

Power Consumption
Approx. 200W

Voltage
AC 220V/50Hz or 110V/60Hz

Dimension (L*W*H)
700 x 540 x 540 mm

Weight
Approximately 80 kg

Usage
Edging and finishing spectacle lenses with 3D contour accuracy

Sterilized
No

Ambient Operating Temperature
10C to 40C

Safety Features
Emergency Stop, Overload Protection, Interlock Door Sensor

Accessory Kit
Includes calibration block, cleaning kit, user manual

Grinding Wheel Material
Diamond-coated wheel

Software Interface
User-friendly GUI with Multi-language support

Noise Level
Less than 65 dB

Clamping Type
Intelligent Automatic Clamp

Connectivity
USB, Ethernet (LAN), RS232 port support

Water Supply System
Automatic water circulation system with filter

Display
7-inch Full Color Touchscreen LCD

Data Storage
Built-in memory for up to 1000 jobs

Edging Speed
80 sec per lens (average)

Beveling Options
Flat, Mini-Bevel, V-Bevel, Grooving, Safety Bevel

3D tracing edger (advanced variants) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
40 Pieces Per Month

Delivery Time
10 Days

About 3D tracing edger (advanced variants)

Experience the unbeatable price and advanced capability of our 3D Tracing Edger (Advanced Variant)-highly recommended for clinics and hospitals. Featuring a gorgeous 7-inch full-color touchscreen and a lustrous diamond-coated grinding wheel, it delivers grand results every time. With intelligent automatic clamping and a precision servo motor, enjoy high-speed edging in just 80 seconds per lens. Special multi-language GUI, ample data storage, and automatic water circulation system ensure efficiency. Safety features and versatile lens support make this an exceptional choice for exporters, importers, suppliers, and traders across India.

Directions, Suitable Usage & Additional Features

To operate, position your lens within the intelligent automatic clamp and follow the clear instructions on the full-color touchscreen. Suitable for hospitals, clinics, and eyewear workshops, this 3D tracing edger handles mineral, plastic, and polycarbonate lenses up to 70mm diameter. Additional highlights include flat, mini-bevel, V-bevel, grooving, and safety beveling options, as well as built-in memory for up to 1000 jobs. Enjoy quiet operation, robust safety protections, and a user-friendly interface for seamless lens edging.

Supply Capability, Quotation Terms & Delivery

We maintain a strong supply ability, ensuring availability for bulk orders to meet the demands of exporters and suppliers. Payment terms are flexible, with quotations provided upon request, and the list price typically includes basic freight. Standard delivery times are prompt, ensuring your advanced 3D tracing edger reaches you without delay. We support secure transactions and efficient logistics, making us a dependable partner for traders across India. Contact us for custom quotes and detailed shipping information.

FAQ's of 3D tracing edger (advanced variants):

Q: How does the 3D tracing edger ensure high-precision edging for various lens types?

A: The 3D tracing edger utilizes a multi-axis 3D vision tracing system and diamond-coated wheel, allowing for extremely accurate contouring and edging of mineral, plastic, and polycarbonate lenses in different diameters and widths.

Q: What is the typical process for operating the advanced variant edger?

A: Operation begins by placing the lens into the intelligent automatic clamp. The user then interacts with the easy-to-navigate, multi-language touchscreen interface to select beveling options, start the automatic tracing, and finalize the edging procedure.

Q: When should maintenance tasks like cleaning or recalibration be conducted?

A: Routine cleaning and recalibration can be performed using the included cleaning kit and calibration block. It is advisable to conduct these tasks weekly, or more frequently with heavy usage, to maintain consistent performance and precision.

Q: Where can I monitor and manage past jobs and stored data on the edger?

A: Past jobs and stored data are accessible through the user-friendly software interface on the 7-inch touchscreen, making it simple to review, select, or manage up to 1000 stored jobs directly from the device.

Q: What are the primary benefits of the automatic water circulation system?

A: The automatic water circulation system with filter ensures continuous cooling and debris removal during edging, which extends the lifespan of diamond wheels and maintains optimal edging quality for every lens processed.
